iglidur® slewing ring, PRT-02, outer ring made from hard anodised aluminium, inner ring made from iglidur® J4
- Slewing rings with extremely low weight
- Outer ring made of hard anodised aluminium
- Inner rings made from iglidur® J4
- Completely maintenance-free
- Easy installation
- High wear resistance
- For very high loads and high stiffness
Part No.
D [mm]

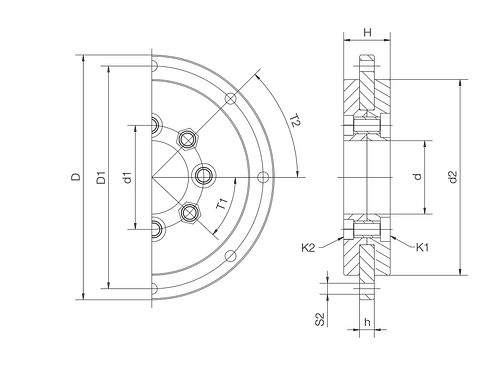

Dimensions
Fold
H [mm]
16 Fold
D [mm]
80 Fold
D tolerance
according to DIN ISO 2768 mK Fold
D1 [mm]
70 Fold
d1 [mm]
31 Fold
d [mm]
20 Fold
Ø d2 [mm]
60 Fold
d2 tolerance
±0,20 mm Fold
h [mm]
5 Fold
T1
6 x 60 ° Fold
T2
6 x 60 ° Fold
S2
4,5 Fold
K1
DIN 6912 M5 Fold
General properties
Fold
Weight [g]
207.11 Fold
Housing material
aluminium Fold
Collar clamp material
iglidur® J4 Fold
Mechanical properties
Fold
Axial load, static [N]
13000 Fold
Axial load, dynamic [N]
4000 Fold
Radial load, static [N]
2000 Fold
Radial load, dynamic [N]
500 Fold
Rotating speed dry running [rpm]
250 Fold
max. permissible tilt moment [Nm]
60 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
60 Fold
Lower application temperature [°C]
-50 Fold
Requirements
Fold
FDA compliant
EU 10/2011 compliant
