iglidur® i180, filament for 3D printing
- Low wear and low coefficient of friction at high rotational speeds
- Wear-resistant at temperatures up to 100 °C
- Easy to process on 3D printers with an enclosed build volume
Material profiles for Bambu Lab and Ultimaker available for download
Part No.
Colour
Filament diameter
Net weight [g]
General properties
Fold
Density [g/cm³]
1.21 Fold
Max. moisture absorption [Wt.- %]
0.3 Fold
Max. total moisture absorption [Wt.- %]
0.9 Fold
Colour
black Fold
Coefficient of friction, dynamic, against 304 stainless steel
0.17 Fold
Coefficient of sliding friction, dynamic, against Cf53 steel
0.17 Fold
Mechanical properties
Fold
Modulus of elasticity printed flat [MPa]
2343 Fold
Flexural strength printed upright [MPa]
33 Fold
Flexural strength printed flat [MPa]
67 Fold
Tensile modulus printed flat [MPa]
1204 Fold
Tensile strength printed flat [MPa]
36 Fold
Shore D hardness
66 Fold

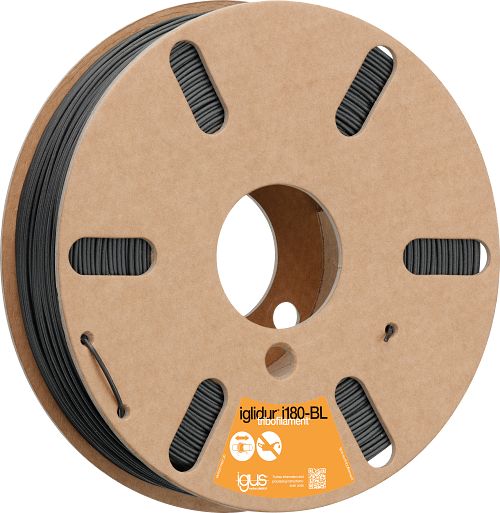

Dimensions
Fold
Spool width [mm]
55 Fold
Inner diameter spool [mm]
52 Fold
Outer diameter spool [mm]
200 Fold
Weights
Fold
Net weight [g]
700 Fold
Physical And Thermal Properties
Fold
Lower application temperature [°C]
-40 Fold
Max. short-term application temperature [°C]
120 Fold
Max. long-term application temperature [°C]
100 Fold
Processing Instructions
Fold
Nozzle temperature (max.) [°C]
265 Fold
Nozzle temperature (min.) [°C]
250 Fold
Bed temperature (max.) [°C]
110 Fold
Bed temperature (min.) [°C]
90 Fold
Requirements
Fold
Suitable for glue stick
Mould-free according to DIN EN ISO 846 Procedure A
Food industry
Properties and approvals
Fold
Flame retardant
PFAS-tested
