dryspin DST high helix lead screw out of stainless steel | right-hand thread
Outer diameter: 4-20mmPitch: 2.4-100mm Multi startNot self-locking
Part No.
Thread size
Selection Info
Length[mm]

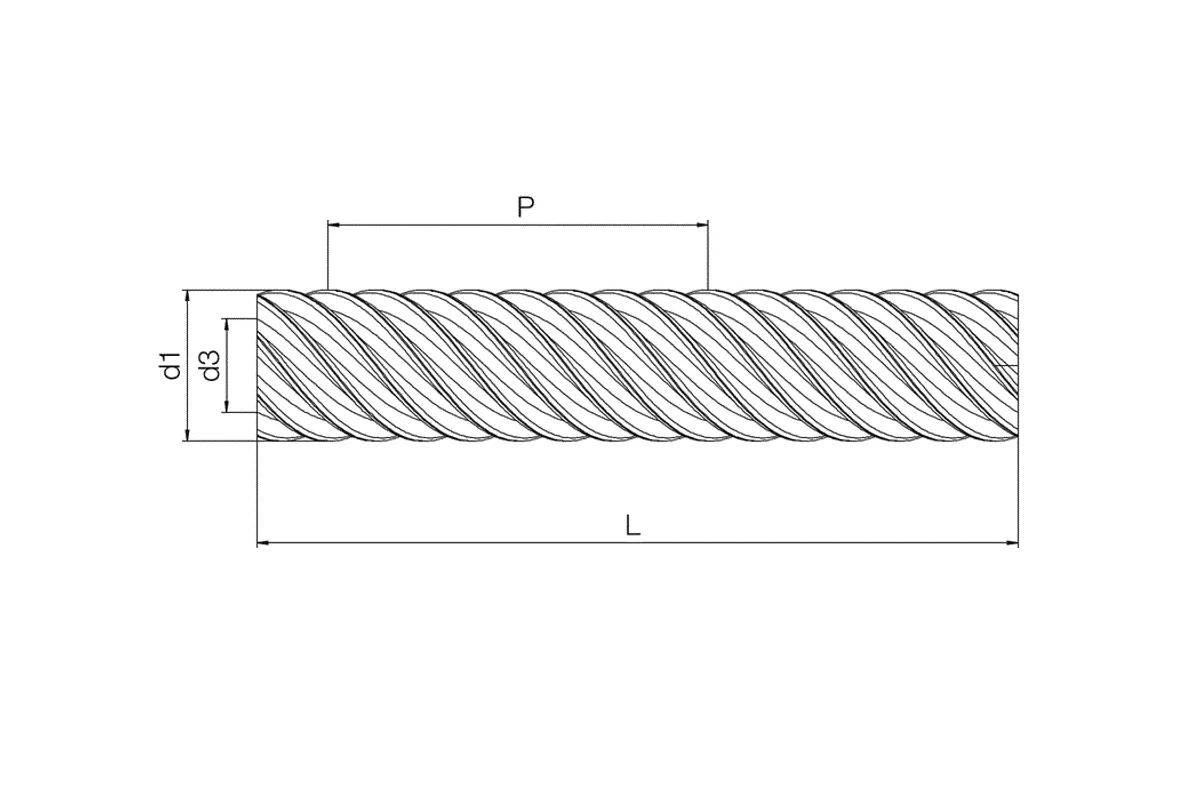

2000 Dimensions
Fold
Thread size
DS10X12 Fold
Pitch P [mm]
12 Fold
Pitch angle α [°]
21.54 Fold
Outer diameter ø d1 min. [mm]
9.9 Fold
Outer diameter Ø d1 max. [mm]
10 Fold
Core diameter Ø d3 min. [mm]
6.85 Fold
Core diameter Ø d3 max. [mm]
6.95 Fold
Max. length [mm]
3000 Fold
Production and installation tolerances
Fold
Helix deviation
0.1 mm to 300 mm Fold
Straightness (Standard)
0.3 mm to 300 mm Fold
Aligned
<0.1 mm to 300 mm (order via configurator) Fold
General properties
Fold
Thread direction
Right-hand thread Fold
Thread type
High helix thread dryspin; highest efficiency Fold
Number of threads
4 Fold
Weight [g]
620 Fold
lead screw material
stainless steel 1.4301 Fold
