dryspin preloaded Zero-Backlash - lead screw nut out of iglidur J | thread: DST - thread | RH
- Material: iglide® J
- Thread direction: Right-hand thread
- Thread type: High helix thread dryspin®
- Design: Standard
- Cylindrical lead screw nut with flange
- Zero-backlash
Part No.
Thread size
Design
Technical data
Fold
Thread size
DS10X12 Fold
Thread direction
Right-hand thread Fold

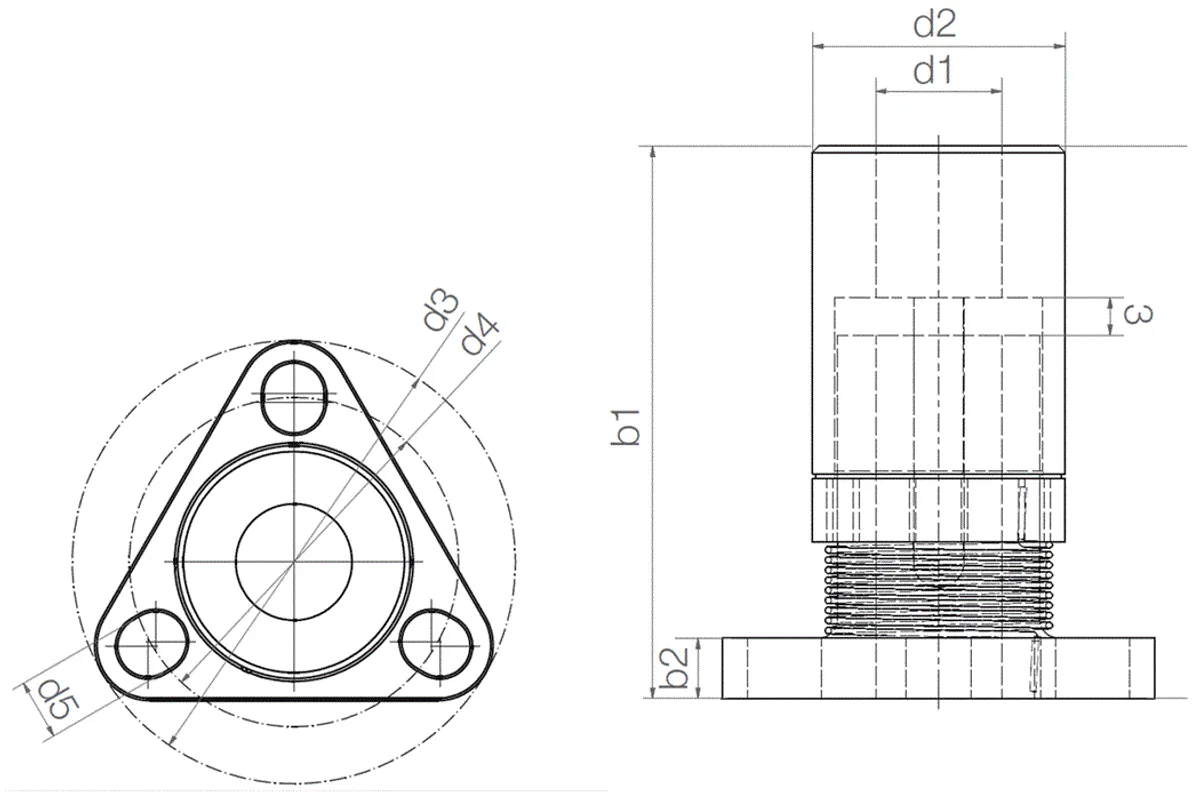

Dimensions
Fold
Ø d2 [mm]
20 Fold
Ø d5 [mm]
5.2 Fold
Ø d4 [mm]
28.3 Fold
b1 max. [mm]
47 Fold
b1 min. [mm]
41 Fold
Ø d3 [mm]
38.1 Fold
Ø d1 [mm]
10 Fold
b2 [mm]
4.8 Fold
Weights
Fold
Weight [g]
16.538 Fold
General properties
Fold
Thread type
High helix thread dryspin; highest efficiency Fold
Anti-backlash
Brand name
dryspin Fold
Manufacturing process
Bar stock Fold
Max. moisture absorption [Wt.- %]
0.3 Fold
Design
Zero-Backlash Fold
Cylindrical lead screw nut with flange
Mechanical properties
Fold
Max. axial static pressure load [N]
150 Fold
Requirements
Fold
Low coefficient of friction
Low water absorption
Mould-free according to DIN EN ISO 846 Procedure A
High speed
High chemical resistance
