drylin® trapezoidal lead screw nut, anti-backlash, JSRM
- Material: iglide® J
- Thread direction: Right-hand thread
- Thread type: Trapezoidal threads
- Design: Standard
- Cylindrical lead screw nut
- Anti-backlash
Part No.
Design
Thread size
Technical data
Fold
Thread size
DS10X12 Fold
Thread direction
Right-hand thread Fold

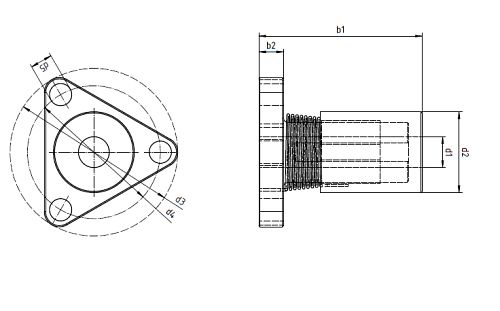

Dimensions
Fold
Ø d2 [mm]
20 Fold
Ø d4 [mm]
28.2 Fold
b1 max. [mm]
46 Fold
b1 min. [mm]
41 Fold
Ø d3 [mm]
38.1 Fold
Ø d1 [mm]
10 Fold
b2 [mm]
4.8 Fold
Weights
Fold
Weight [g]
20.336 Fold
General properties
Fold
Thread type
High helix thread dryspin; highest efficiency Fold
Anti-backlash
Max. total moisture absorption [Wt.- %]
1.3 Fold
Brand name
dryspin Fold
Manufacturing process
Bar stock Fold
Max. moisture absorption [Wt.- %]
0.3 Fold
Design
Preload Fold
Density [g/cm³]
1.49 Fold
Cylindrical lead screw nut with flange
Colour
yellow Fold
Mechanical properties
Fold
Flexural strength (at 20°C/68°F) [MPa]
73 Fold
Max. recommended surface pressure [MPa]
35 Fold
Max. axial static pressure load [N]
35 Fold
Shore D hardness
74 Fold
Modulus of elasticity [MPa]
2.4 Fold
Requirements
Fold
Low coefficient of friction
Low water absorption
High speed
High chemical resistance
