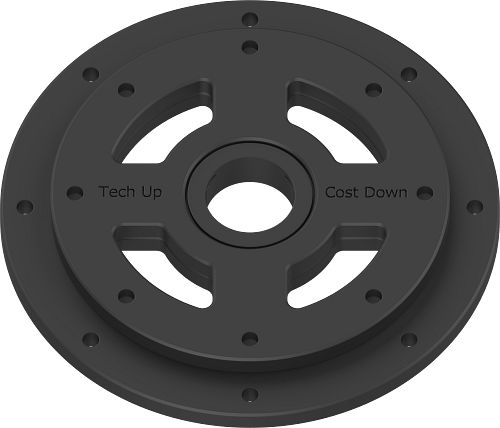

iglidur® slewing ring, PRT-05, low cost made of solid plastic
- Lightweight design
- Cost-effective solid plastic slewing ring bearing
- Durable material combination iglidur® M260 and P4
- Tested in the igus® laboratory
- Made from at least 97% regranulate

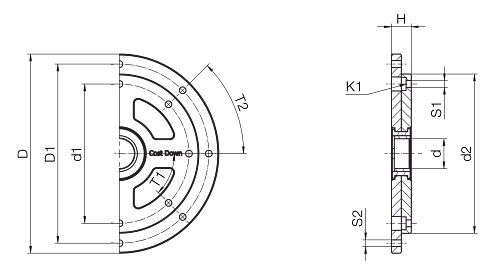

Part No.
D [mm]
Dimensions
Fold
H [mm]
10 Fold
D [mm]
100 Fold
D1 [mm]
90 Fold
d1 [mm]
70 Fold
d [mm]
15 Fold
Ø d2 [mm]
80 Fold
T1
45° Fold
T2
45° Fold
S1
3,4 mm H13 Fold
S2
3,4 mm H13 Fold
K1
DIN 7984 M3 Fold
General properties
Fold
Weight [g]
75.55 Fold
Mechanical properties
Fold
Axial load, static [N]
13000 Fold
Axial load, dynamic [N]
3000 Fold
Radial load, static [N]
500 Fold
Radial load, dynamic [N]
100 Fold
Rotating speed dry running [rpm]
50 Fold
max. permissible tilt moment [Nm]
5 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
100 Fold
Lower application temperature [°C]
-30 Fold
