Rod end made of stainless steel with female thread, iglidur® A181 bearing ring
- Metallic rod end with female thread with stainless steel spherical ball for high transverse loads
- Maintenance-free inner ring made of iglidur® A181 for food applications
- Right-hand/left-hand thread
- Housing made of stainless steel (1.4301)
- Spherical ball made of stainless steel (1.4305)
- Dimensional series K following DIN ISO 12240
Part No.
Thread direction
Shaft diameter [mm]
Housing material
Spherical ball material
Thread type
Dimensions
Fold
Shaft diameter [mm]
8 Fold
Ø d2 [mm]
26.5 Fold
d3 thread
M08 Fold
C1 [mm]
9 Fold
B [mm]
12 Fold
h1 [mm]
36 Fold
l1 [mm]
16 Fold
l2 [mm]
49.25 Fold
W (width across flats)
SW13 Fold
Min. thread engagement [mm]
16 Fold
General properties
Fold
Weight [g]
45.58 Fold
thread (inner/outer)
inner thread Fold
Thread direction
Left-hand thread Fold
Dimensional series
K, according to DIN ISO 12240 Fold
Housing material
不锈钢压铸件 Fold
Spherical ball material
Stainless steel Fold
Mechanical properties
Fold
Max. static transverse load, short-term [N]
1150 Fold
Max. static transverse load, long-term [N]
575 Fold

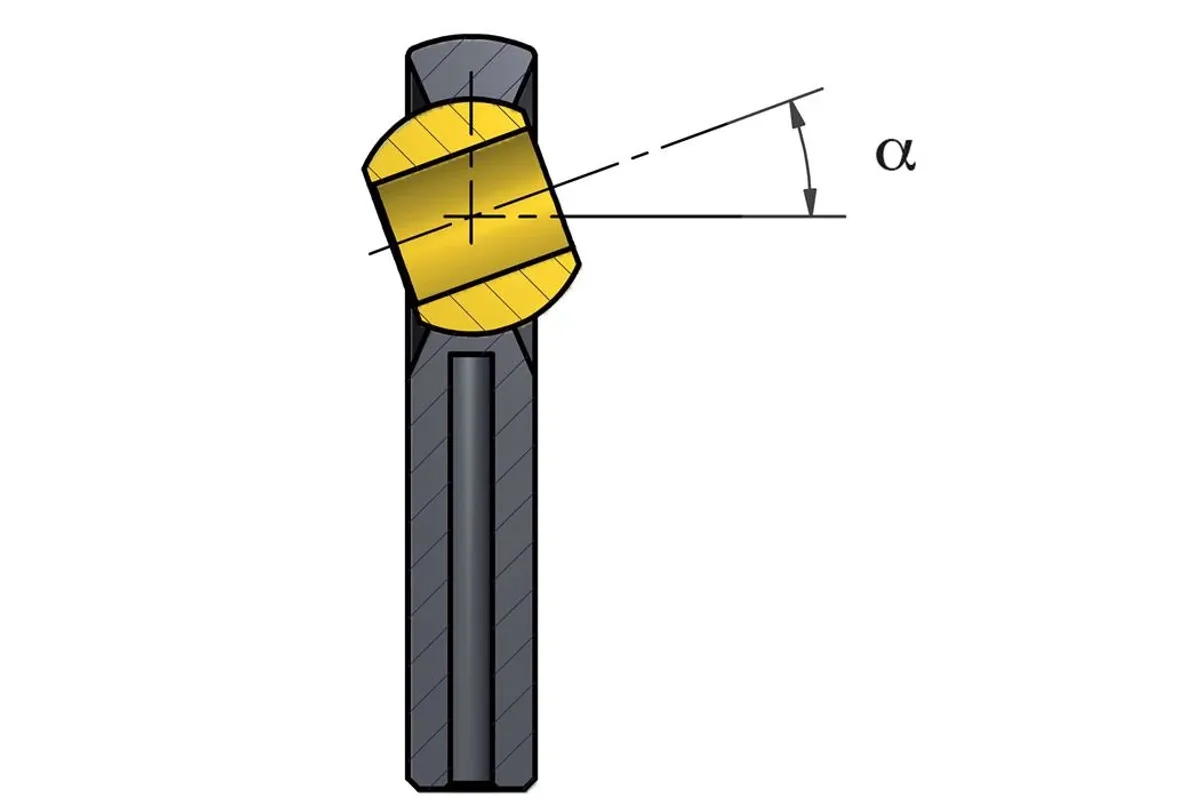

Max. pivot angle (α) [°]
25 Fold
Max. axial static load, short-term [N]
270 Fold
Max. axial static load, long-term [N]
135 Fold
Max. static radial tensile stress, short-term [N]
3750 Fold
Max. static radial tensile stress, long-term [N]
1875 Fold
Thermal properties
Fold
Max. long-term application temperature [°C]
90 Fold
Max. short-term application temperature [°C]
110 Fold
Lower application temperature [°C]
-50 Fold
