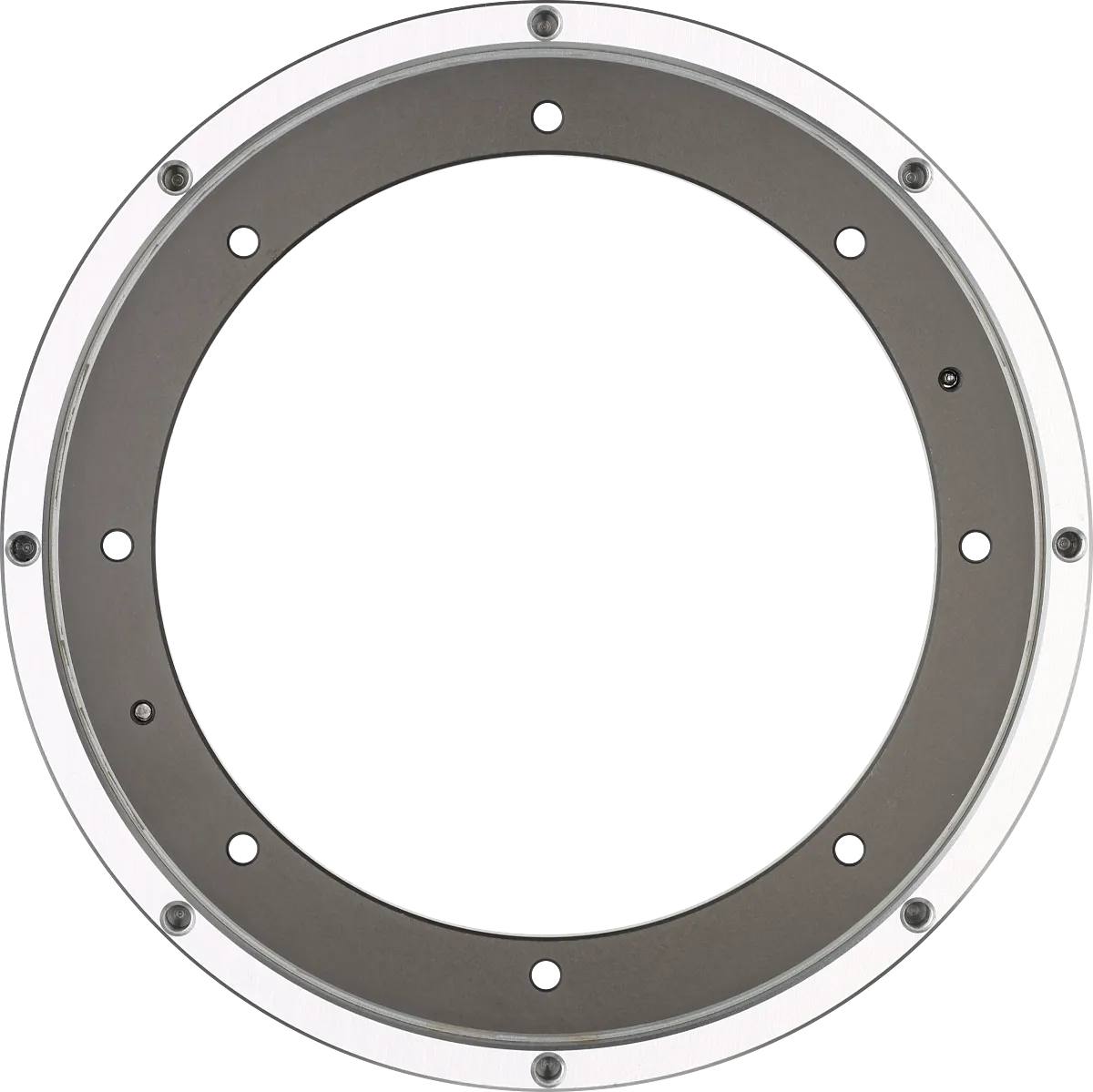

iglidur® PRT-04, compact version
- 60% lighter, 50% more space saving compared to the PRT-01
- 20% cheaper compared to the PRT-01
- Also suitable for clean room applications thanks to iglidur® J gliding elements
Part No.
D [mm]
Technical data
Fold
S1
M4 Fold
Dimensions
Fold
D [mm]
60 Fold
S2
M4 Fold
Ø d2 [mm]
60 Fold
d1 [mm]
30 Fold
T1
8x45 Fold
D1 [mm]
54 Fold
d [mm]
20 Fold
H [mm]
17 Fold
T2
8x45 Fold
Weights
Fold
Weight [g]
97.953 Fold
General properties
Fold
Brand name
iglidur Fold
Mechanical properties
Fold
Axial load, dynamic [N]
1500 Fold
Axial load, static [N]
5000 Fold
max. permissible tilt moment [Nm]
15 Fold
Rotating speed dry running [rpm]
300 Fold
Requirements
Fold
PRT series
PRT-04 Fold
