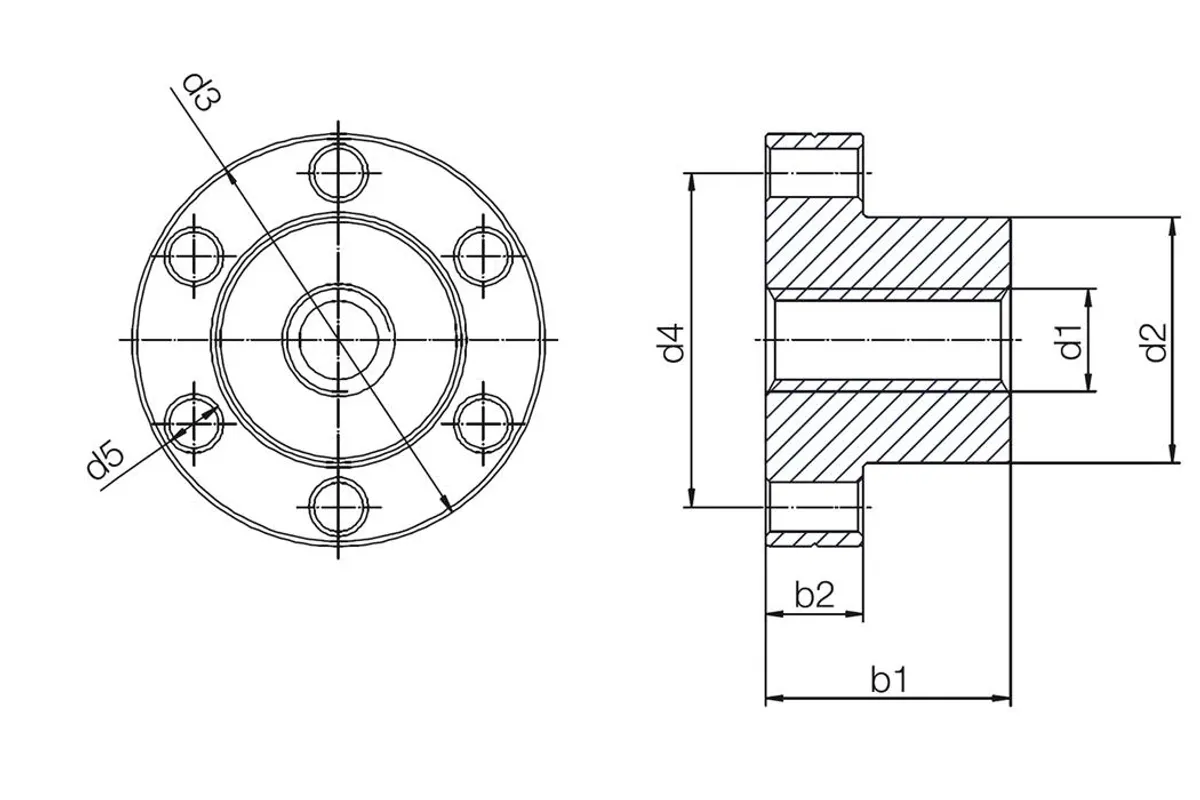

drylin® trapezoidal lead screw nut with flange, A180FLM
- Material: iglide® A180
- Thread direction: Left-hand thread
- Thread type: Trapezoidal threads
- Design: Standard
- Cylindrical lead screw nut with flange
Part No.
Ø d2 [mm]
Ø d3 [mm]
b1 [mm]
Thread size
Dimensions
Fold
Thread size
TR08X1.5 Fold
Ø d1 [mm]
8 Fold
Ø d2 [mm]
20 Fold
Ø d3 [mm]
36 Fold
Ø d4 [mm]
28 Fold
Ø d5 [mm]
4 Fold
b1 [mm]
20 Fold
b2 [mm]
8 Fold
General properties
Fold
Thread direction
Left-hand thread Fold
Thread type
Trapezoidal threads; absorption of larger axial forces Fold
With spanner flat
Weight [g]
60 Fold
Thermal properties
Fold
Efficiency [η]
19-33 Fold
Requirements
Fold
Mould-free according to DIN EN ISO 846 Procedure A
