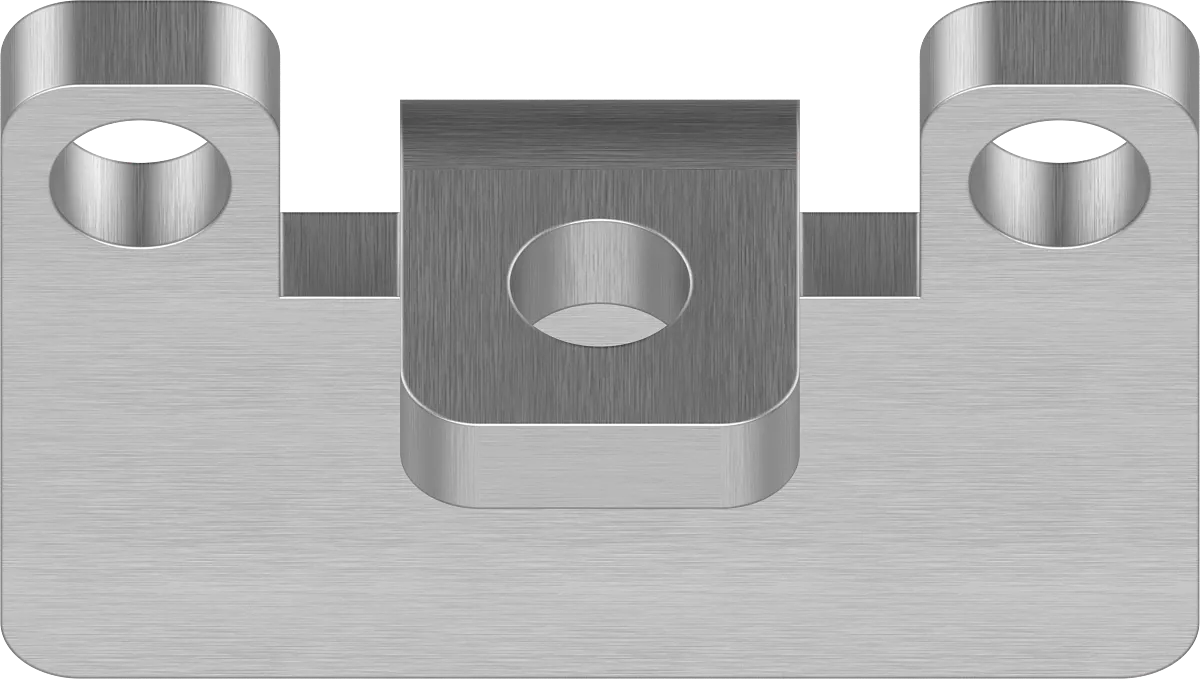

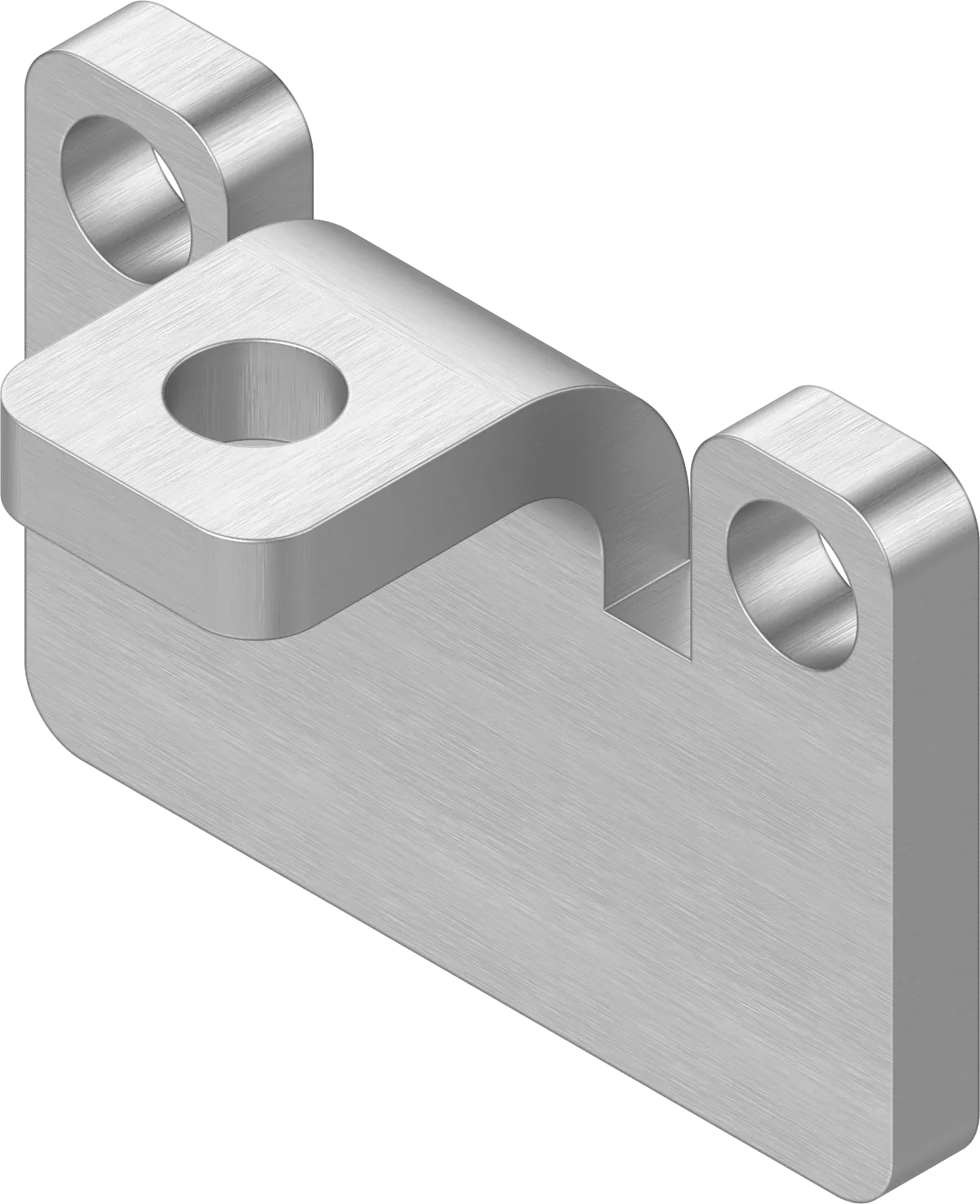

drylin C rail cover | With additional M4 plain hole in y-direction

Rail cover for drylin C roller guide
With additional plain hole in y-direction
Lubrication and maintenance-free
Easy to assemble/disassemble
Lightweight

Part No.

CWA-3030-02-02

Dimensions

3030 Unfold Fold

K3 [mm]

4.5 Unfold Fold

C3 [mm]

21 Unfold Fold

h [mm]

21 Unfold Fold

a [mm]

30 Unfold Fold

T2 [mm]

10 Unfold Fold

T3 [mm]

4.5 Unfold Fold

Weights

Weight [g]

21.793 Unfold Fold

General properties

New status

Brand name

drylin Unfold Fold
